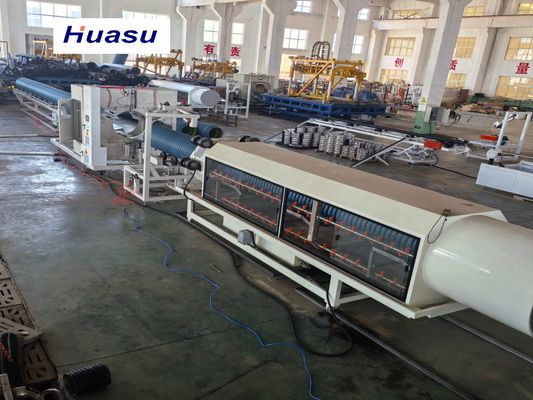

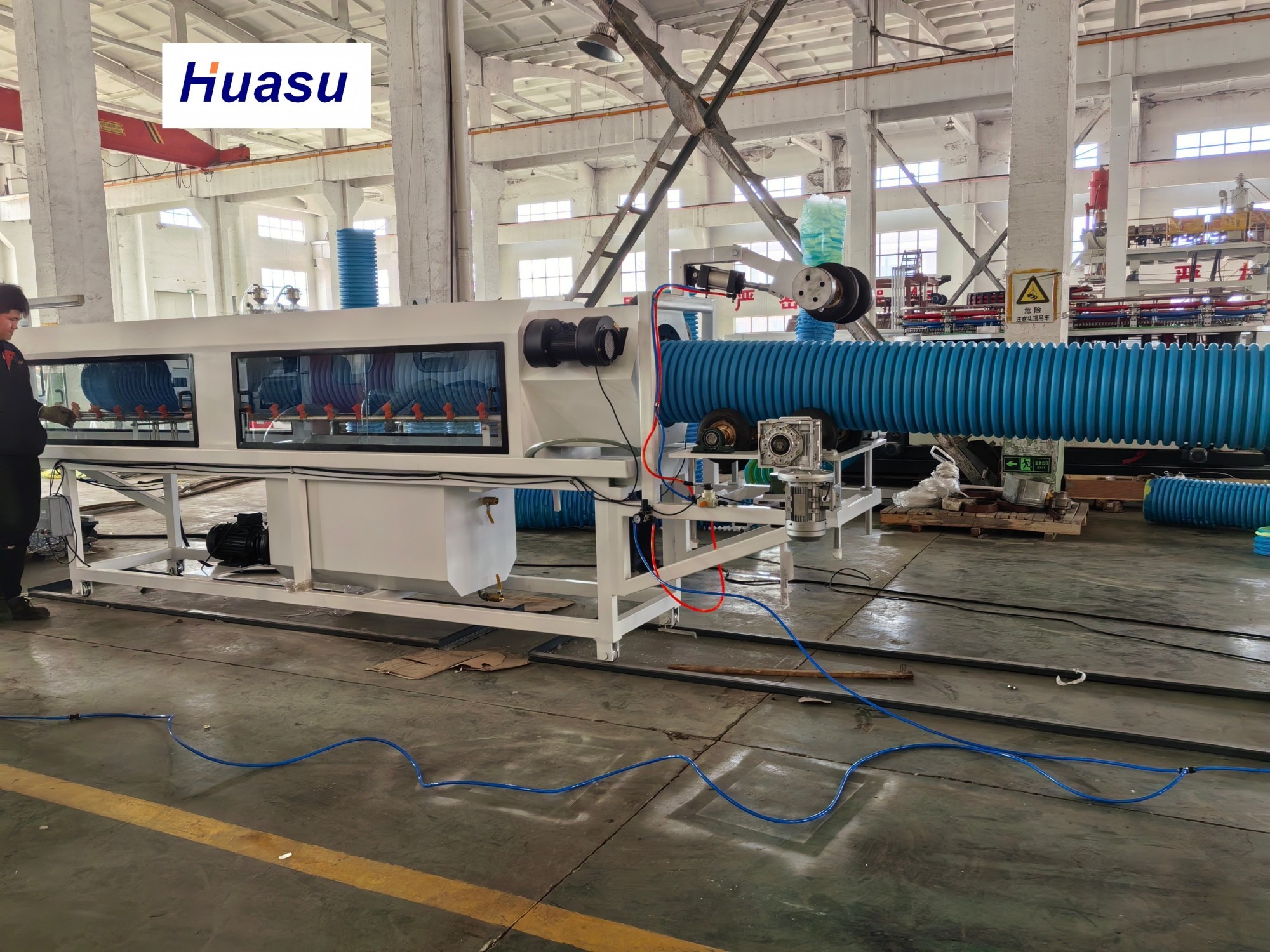

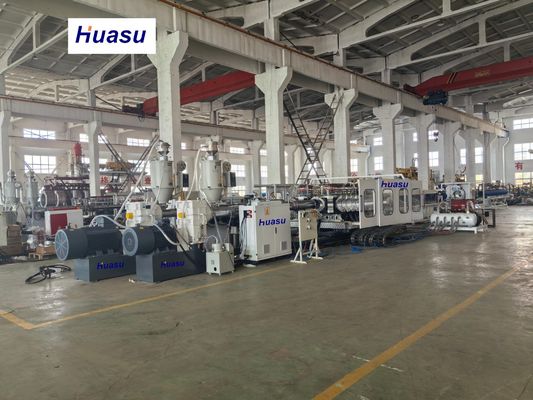

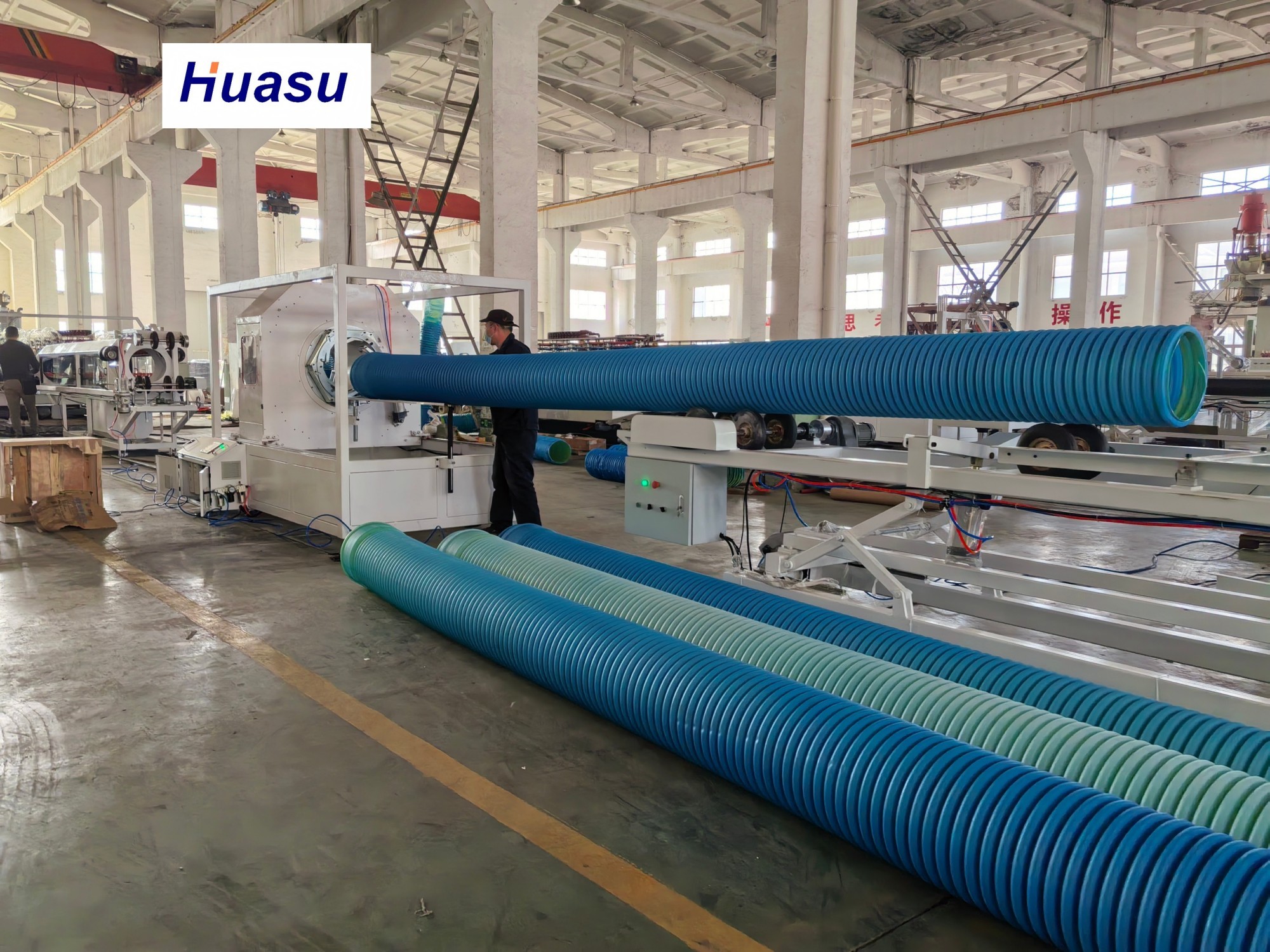

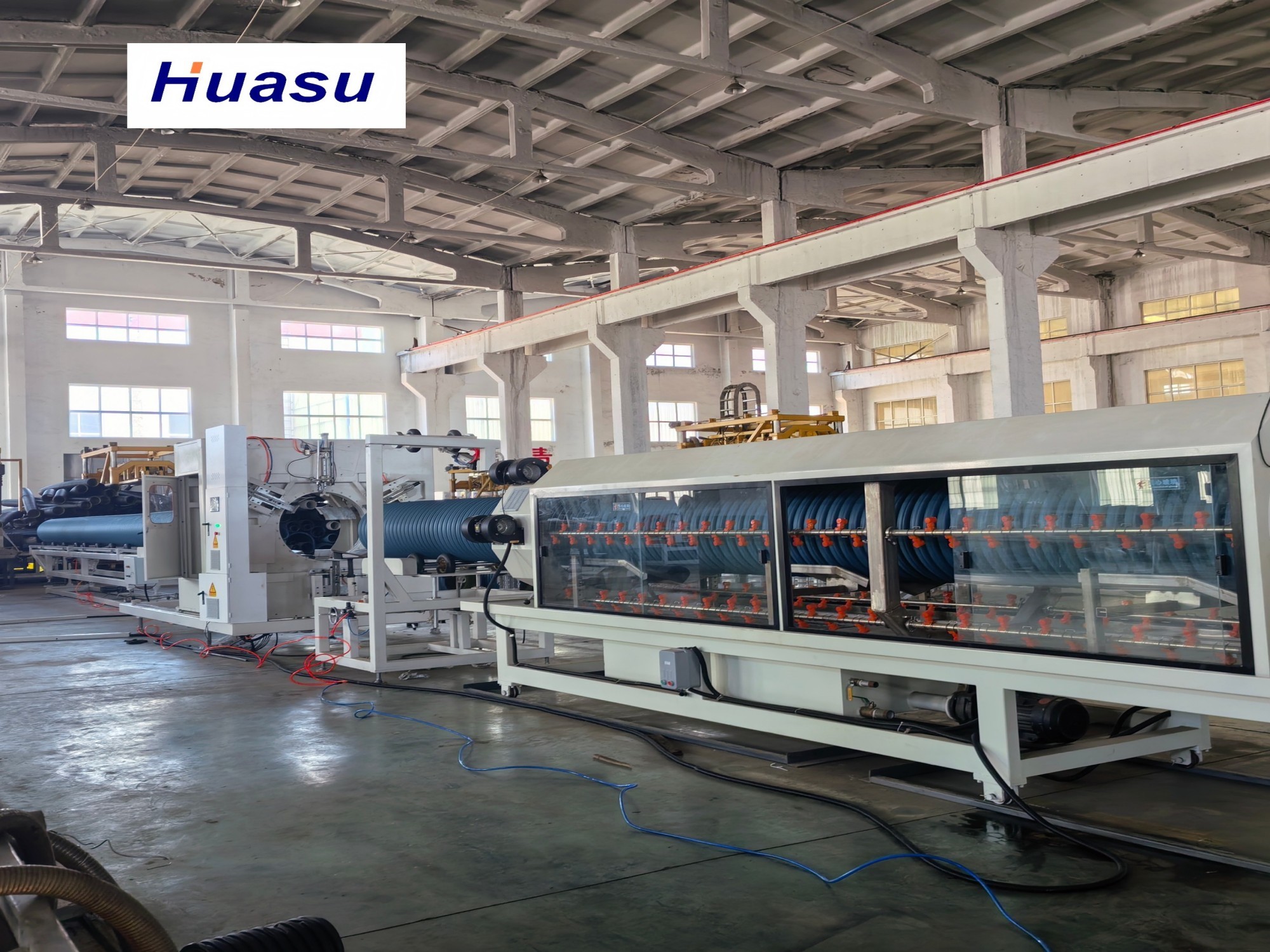

Bridge Prestressed Cable Protection Corrugated Pipe Extrusion Line
| Merknaam | HUASU |
|---|---|
| Certificering | CE,ISO,UL,QS,GMP |
| Model Number | SBG |
| Minimum Order Quantity | 1 Line |
| Prijs | USD10k-1000k |
| Packaging Details | STANDARD Package |
| Delivery Time | 90day |
| Payment Terms | TT,LC |
| Supply Ability | 100 Line |
Neem contact met me op voor gratis monsters en coupons.
whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
Als u zich zorgen maakt, bieden we 24-uurs online hulp.
xProductdetails
| Pijpdiameter (MM.) | 32-1600 mm | Doodkop. | Spiraalco-extrusie met twee lagen |
|---|---|---|---|
| functie van de buis | Kabelbeschermingsdek, medische overbrenging, gasoverdracht, wateroverdracht. | Maximum snelheid (m/min) | 1.5-5m/min |
| HDPE-uitvoer | 40-1600 kg/uur | structuurgolfmachine | Horisontale structuur Corrugator, gemakkelijk te wijzigen Productie grootte |
| Vorming | Vacuümvorming | Koelsysteem | Volledige interne koelsysteem. |
| Markeren | Cable Protection Pipe Extrusion Line,Corrugated Pipe Extrusion Line,Bridge Prestressed Pipe Extrusion Line |
||
Productomschrijving
Bridge Prestressed And Cable Protection Corrugated Pipe Extrusion Line
Product Description:
The corrugated pipe line is the 3rd generation of the improved product of Shandong HUASU. The output of the extruder and the production speed of the pipe are greatly increased by 20-40% compared with the previous product.
Online belling can be achieved to ensure the performance of the formed corrugated pipe products.
Adopts Siemens PLC system.
Features:
The newly designed closed molding machine is equipped with a special high-efficiency cooling system tailored for shaping aluminum modules, significantly enhancing the cooling efficiency during the production of corrugated pipe products.
It is supported by a high-speed, high-output single-screw extrusion machine featuring a professionally designed corrugated pipe extrusion mold, enabling large-scale, stable extrusion.

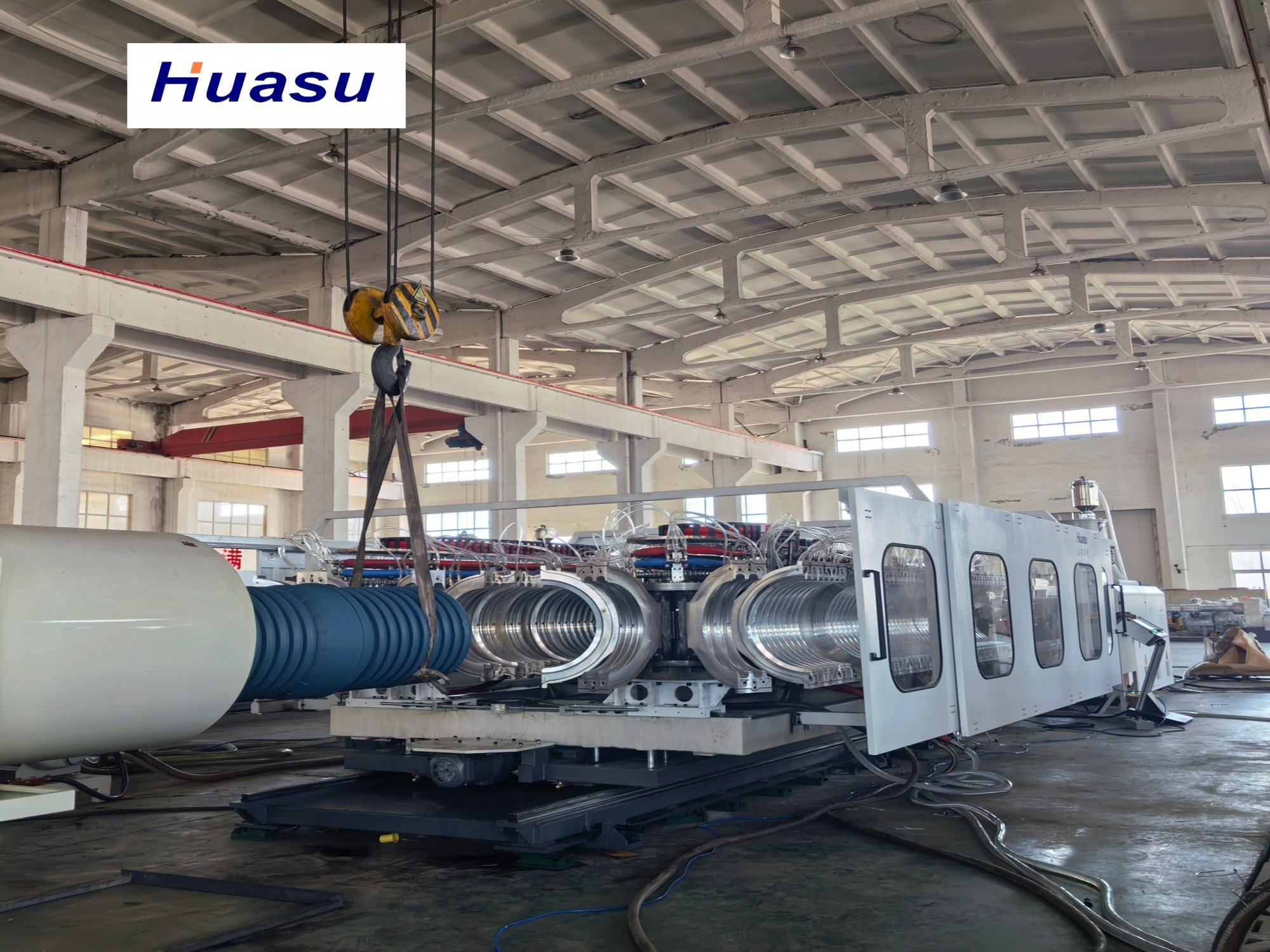

The modules exhibit good interchangeability. The aluminum forming module is constructed with LY12 high-quality alloy aviation aluminum material containing at least 5% copper. Utilizing precision pressure casting process, the high-density material is free from light pores and resistant to deformation during long-term use. Various module waveform schemes can be customized according to user requirements.
Additionally, the machine is complemented by an automatic DWC cutter with computer control for accurate cutting position, stable operation, and user-friendly interface for ease of operation.
Technical Parameters:
| Technical Parameter | Specification |
|---|---|
| Total power(kw) | 200-1000kw |
| Max speed (m/min) | 1.5-5m/min |
| Structure corrugator | Horizontal Structure Corrugator, Easy Change Production Size |
| Forming | Vacuum Forming |
| Die head | Double-layer Spiral Co-extrusion |
| Pipe function | Cable Protect Cover, Medical Transfer Pipe, Gas Transfer, Water Transfer |
| Cooling system | Complete Inner Cooling System |
| HDPE output | 40-1600kg/h |
| Pipe diameter(mm) | 32-1600mm |
Applications:
The corrugated pipe extrusion machine is capable of manufacturing corrugated pipes with outer diameters ranging from 32mm to 1600mm. These corrugated pipes find diverse applications including serving as cable protection covers and medical transfer pipes, particularly for smaller sizes. Additionally, they are utilized for gas and water transfers in larger corrugated pipe sizes.
